Description

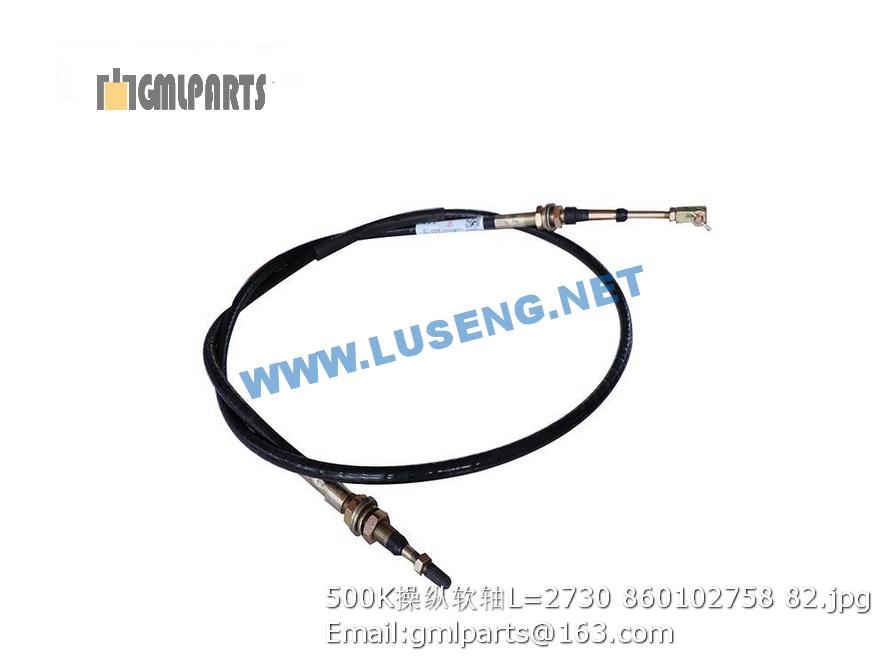

860102758 500K CONTROL SHAFT L=2730
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 252900249 变速操纵系 Shift Control 1
2 ▲ZL50G-060401 专用齿条 Gear Rack 1 LJ134G-01
3 ▲ZL50G-060402 十字槽盘头螺钉M5x8 Cross Bolt 2 GB/T818-2000
4 ▲ZL50G-060403 壳体总成 Shell 1 LJ134G-02
5 ▲ZL50G-060404 开口挡圈10 Split Baffle Ring 1 GB/T896-1986
6 ▲ZL50G-060405 转动销轴 Shaft 1 LJ134G-03
7 ▲ZL50G-060406 轮轴合件 Shaft 1 LJ134G-04
8 ▲ZL50G-060407 平垫 Flat Washer 1 YOLBJ18100012
9 ▲ZL50G-060408 花键轴 Spline Shaft 1 YOLBJ18100008
10 ▲ZL50G-060409 丝套 Sheath 1 YOLBJ18100010
11 ▲ZL50G-060410 外锯齿止退垫圈24 Washer 1 GB/T862.2-87
12 ▲ZL50G-060411 薄螺母M24x1.5 Nut 1
13 ▲ZL50G-060412 锁紧螺母M10 Gib Nut 1 GB/T6187.1-2000
14 ▲ZL50G-060413 手柄总成 Handle Assembly 1 LJ134G-05
15 ▲ZL50G-060414 沉头螺钉M5x15 Bolt 1 GB/T819.1-2000
16 ▲ZL50G-060415 134通用手柄 Handle 1
17 ▲ZL50G-060416 主动锥齿轮 Bevel Drive Pinion 1 LJ134G-06
18 ▲ZL50G-060417 盖板 Cover Board 1 LJ134G-07
19 ▲ZL50G-060418 LJ134G软轴 Soft axes 1 LJ134G-08
20 805000062 螺栓 M10×35 Bolt 2 GB/T 5783-2000
21 805300014 垫圈 10 Washer 2 GB/T93-1987
22 251800747 支架 BRACKET 1 500F.2-1
