Description

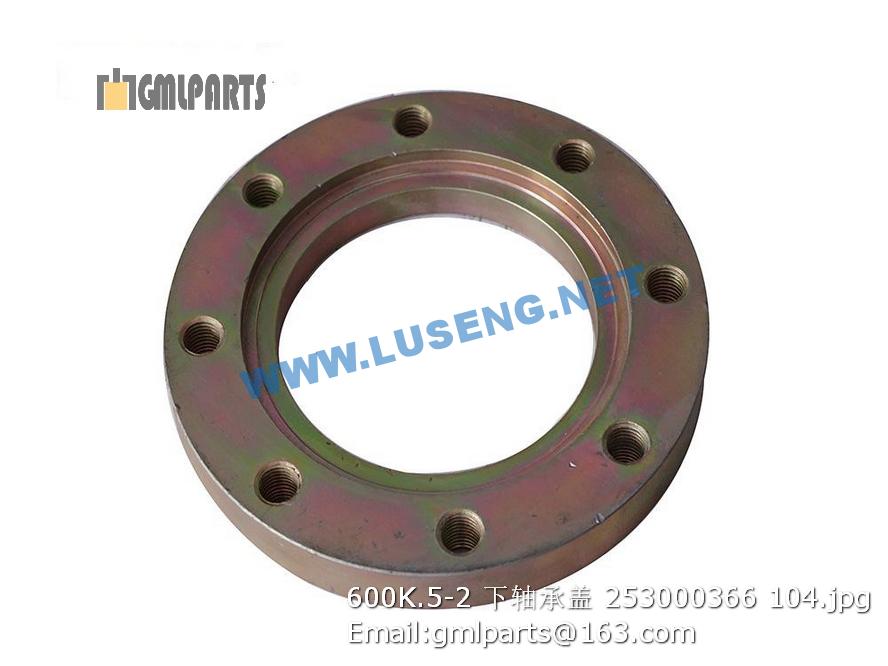

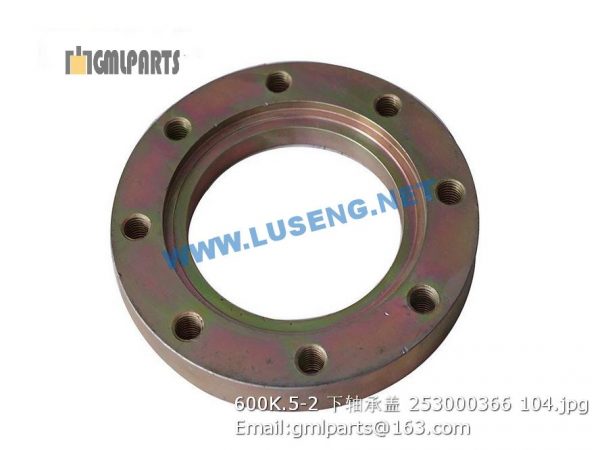

253000366 600K.5-2 Bearing Cover
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 803165983 接头 Joint 2
2 251400232 软管总成 Hose 2
3 803164550 接头 Joint 2
4 250202024 滤清器 FILTER 1
5 805000029 螺栓 M10×40 Bolt M10×40 2 GB/T5783-2000
6 805300014 垫圈 10 Washer 2 GB/T93-1987
7 805300017 垫圈10 Washer 2 GB/T97.1-2002
8 805200048 螺母 M10 Nut 2 GB/T6170-2000
9 252906525 弯管 tube 1
1 272200165 ZL40/50变速器总成 Gearbox 1 2BS315A(II)
2 250200229 密封垫 Seal Washer 1
3 250200585 变矩器 Torque-Converter 1
4 805601564 销D10×30 Pin 2 GB119-86
5 805300014 垫圈 10 Washer 31 GB/T93-1987
6 805000076 螺栓M10X70 Bolt 5 GB/T5782-2000
7 805000043 螺栓 M10×30 Bolt 26 GB/T 5783-2000
1 250200608 导轮座 Stator Guide Sleeve 1
2 801100284 O形圈105×3.1 O-Ring 1
3 250200625 壳体 Converter Housing 1
4 860101016 螺栓M8×16 Bolt 8
5 805302458 垫圈8 Lock Washer 44
6 250200592 垫板 Plate 1
7 250200593 垫 Pad 1
8 250200603 弹簧 Spring 18
9 250200586 齿轮 Gear 1
10 800511269 轴承6017 Bearing 2
11 269900130 螺栓M8×35 Bolt 24
12 250200607 泵轮 Imperller 1
13 250200598 阀杆 Valve Stem 1
14 805200045 螺母 8 Nut 24 GB/T 6170-2000
15 250200589 静环 Static Ring 1
16 250200594 压紧垫片 Impaction Washer 1
17 250200587 动环 Dynamic Ring 1
18 805000020 螺栓 M8×30 Bolt 12 GB/T5783-2000
19 250200588 止动销 Pin 1
20 250200602 导轮 Stator 1
21 805400092 挡圈85 Snap Ring 1
22 250200805 一级涡轮 I Turbine 1
23 250200800 二级涡轮 II Turbine 1
25 805400035 挡圈50 Snap Ring 1
26 860113674 轴承6013 Bearing 1
27 805000727 螺栓M10X25 Bolt 9 GB/T5783-2000
28 805300014 垫圈 10 Washer 9 GB/T93-1987
29 803165983 接头 Joint 2
32 250200595 阀盖 Valve Cover 1
33 250200600 弹簧 Spring 1
34 803163971 螺塞AR3/4 Plug 1
36 250200599 锥阀杆 Valve Stem 1
37 250200596 垫板 Plate 1
38 250200597 弹簧 Spring 1
39 805300018 垫圈12 washer 12 6 GB/T93-1987
43 805501126 铆钉5×14 Screw 12 GB869-86
44 250200802 一级涡轮壳 I Turbine Coverter Housing 1
45 250200803 一级涡轮罩 I Turbine Guide Sleeve 1
46 800511595 轴承6210/P0 Bearing 1 GB/T276-1994
47 250200804 弹性销 Pin 9
49 250200590 罩轮 Cover 1
50 250200591 圆垫板 Plate 1
51 250200627 联接弹性板 Linking Plate 1
54 250200626 弹性板S=1.0 Plate 2
55 805000715 螺栓 M12×25 Bolt 6 GB/T 5783-2000
56 250200162 垫 WASHER 1 ZL40.3-3
