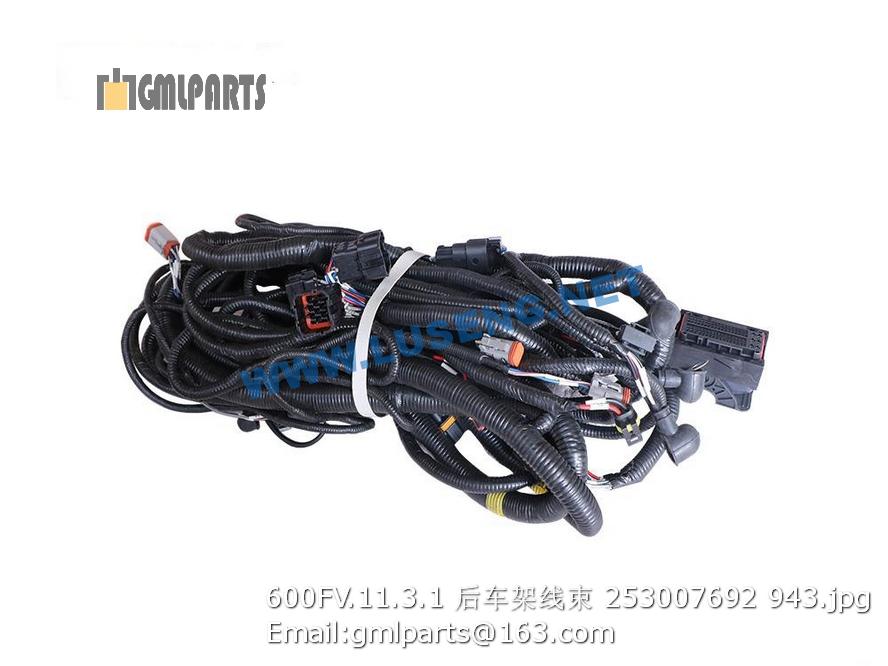

253007692 600FV.11.3.1 REAR FRAME HARNESS
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲WL50G-060201 前下包 Shell 1 RC1400-01
2 ▲WL50G-060202 仪表上盖 Cover 1 RC1400-02
3 ▲WL50G-060203 左大包 Shell 1 RC1400-03
4 ▲WL50G-060204 软轴 Flex Shaft 1 LJ134G×1550
5 860114362 方向盘 Steering Wheel 1 RC1400-04
6 860110871 龙马开关 Switch 1 NY-LJ
7 ▲WL50G-060205 右大包 Shell 1 RC1400-05
8 ▲WL50G-060206 调节手柄 Handle 1 RC1400-06
9 ▲WL50G-060207 翘板开关盒 Switch Control Box 1 RC1400-07
10 ▲WL50G-060208 开关盒下盖 Cover 1 RC1400-08
11 ▲WL50G-060209 后下包 Shell 1 RC1400-09
12 ▲WL50G-060210 方向机支架 Bracket 1 RC3400-1010
1 ▲WL50G-060301 转轴组件 Shaft 1 RC3400-1010-01
2 ▲WL50G-060302 上轴承座 Bearing Block 1 RC3400-1010-02
3 ▲WL50G-060303 轴承16006 Bearing 2 GB/T276-1994
4 ▲WL50G-060304 轴承盖板 Cover 1 RC3400-1010-03
5 ▲WL50G-060305 上支架 Bracket 1 RC3400-1010-04
6 ▲WL50G-060306 小支架组件 Bracket 1 RC3400-1010-05
7 ▲WL50G-060307 27固定套 Fixed Tube 2 RC3400-1010-06
8 ▲WL50G-060308 18固定套 Fixed Tube 2 RC3400-1010-07
9 ▲WL50G-060309 把手组件 Handle 1 RC3400-1010-08
10 ▲WL50G-060310 拉簧 Tension Spring 3 RC3400-1010-09
11 ▲WL50G-060311 转板螺栓 Bolt 1 RC3400-1010-10
12 ▲WL50G-060312 旋转轴压板 Plate 2 RC3400-1010-11
13 ▲WL50G-060313 下支架 Bracket 1 RC3400-1010-12
14 ▲WL50G-060314 35固定套 Fixed Tube 1 RC3400-1010-13
15 ▲WL50G-060315 26固定套 Fixed Tube 1 RC3400-1010-14
16 ▲WL50G-060316 底板 Bottom-Board 1 RC3400-1010-15
17 ▲WL50G-060317 底座组合 Bearer 1 RC3400-1010-16
18 ▲WL50G-060318 大包壳固定板 Plate 1 RC3400-1010-17
19 ▲WL50G-060319 滑杆组件 Sliding Rod 1 RC3400-1010-18
20 ▲WL50G-060320 滑槽 Slideway 1 RC3400-1010-19
21 ▲WL50G-060321 上齿板 Plate 2 RC3400-1010-20
22 ▲WL50G-060322 加强板 Plate 2 RC3400-1010-21
23 ▲WL50G-060323 转轴 Shaft 1 RC3400-1010-22
24 ▲WL50G-060324 转板螺栓II Bolt 1 RC3400-1010-23
25 ▲WL50G-060325 旋转轴小螺栓 Bolt 2 RC3400-1010-24
26 ▲WL50G-060326 15固定套 Fixed Tube 2 RC3400-1010-25
27 ▲WL50G-060327 15固定套支撑板 Plate 2 RC3400-1010-26
28 ▲WL50G-060328 侧支架 Bracket 1 RC3400-1010-27
29 ▲WL50G-060329 下轴承座 Bearing Block 1 RC3400-1010-28
30 ▲WL50G-060330 M6螺母 Nut 1 GB/T6170-2000
31 ▲WL50G-060331 M6×16螺钉 Screw 1 GB/T823
32 ▲WL50G-060332 下齿板 Plate 2 RC3400-1010-29
33 ▲WL50G-060333 M6×12螺栓 Bolt 4 GB/T70.1-2000
34 ▲WL50G-060334 拉簧 Tension Spring 2 RC3400-1010-30
35 ▲WL50G-060335 20固定套 Fixed Tube 2 RC3400-1010-31
36 ▲WL50G-060336 档圈 Check Ring 2 GB/T894.1-1986
37 ▲WL50G-060337 弹簧挂勾柱 Spring Hook Column 1 RC3400-1010-32
38 ▲WL50G-060338 下轴承座盖板 Cover 1 RC3400-1010-33
39 ▲WL50G-060339 上齿板支撑座 Bearer 2 RC3400-1010-34
40 ▲WL50G-060340 旋转轴螺栓 Bolt 2 RC3400-1010-35
41 ▲WL50G-060341 拉簧 Tension Spring 1 RC3400-1010-36
42 ▲WL50G-060342 垫圈 Washer 2 RC3400-1010-37
1 ▲WL50G-060401 手枕 Hand Pillow 1 XG-500K-02001B
2 ▲WL50G-060402 手枕支架 Bracket 1 XG-500K-02002B
3 ▲WL50G-060403 固定座 Holder 1 XG-500K-02003B
4 ▲WL50G-060404 锁紧旋钮 Knob 1 XG-500K-02004B
5 ▲WL50G-060405 喷水壶罩 Hoop 1 XG-500K-02000
6 ▲WL50G-060406 操纵箱总成 Control Box Body 1 XG-500K-01000B
7 ▲WL50G-060407 面板C(XGCZX-04000A/1) Panel 1 配进口单手柄
