Description

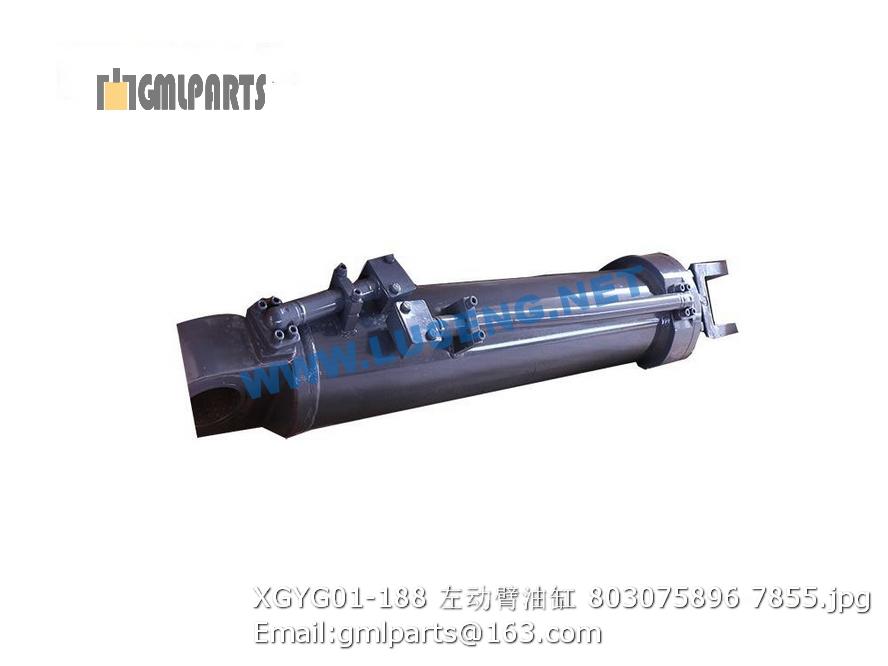

803075896 XGYG01-188 LEFT LIFT CYLINDER XCMG LW600FN
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 860118611 主传动齿轮副 Spur pinion set 1 75201775
2 ▲228702323-040301 螺栓M14X1.5X50 Bolt 12
3 ▲228702323-040302 螺母M14x1.5 Nut 12
4 ▲228702323-040303 轴承142807Y Bearing 1
5 ▲228702323-040304 调整垫片组 Adjusting washers 1
6 ▲228702323-040305 轴承47686/47620A Bearing 2
7 ▲228702323-040306 调整螺母 Adjusting nut 2
8 ▲228702323-040307 铜套 Copper bush 1
9 ▲228702323-040308 螺栓 Bolt 1
10 ▲228702323-040309 锁紧片 Lock plate 1
11 ▲228702323-040310 螺母 M27x2 nut 1
12 ▲228702323-040311 轴承座 Bearing cage 1
13 ▲228702323-040312 调整垫片组 Adjusting washers 1
14 ▲228702323-040313 主减速器壳组件 Carrier housing assy. 1
15 ▲228702323-040314 轴承31313 Bearing 1
16 ▲228702323-040315 锁紧片 Lock plate 2
17 ▲228702323-040316 螺栓M10X20 Bolt 2
18 ▲228702323-040317 调整隔套组 Adjusting sleeves 1
19 ▲228702323-040318 轴承31314 Bearing 1
20 ▲228702323-040319 挡圈90 Ring 1
21 860118612 差速器总成 Diff. assembly 1 82231603
1 ▲228702323-040401 差速器壳组件 Diff. case sub. 1
2 ▲228702323-040402 凸缘螺栓 Flange bolt 8 75501981
3 ▲228702323-040403 NOSPIN差速器组件 NOSPIN diff. 1 75700269
4 ▲228702323-040404 螺母M16X1.5 Nut 8 75501993
1 800302284 轮胎 Tyre 2
2 800105109 轮辋 Circular rim 2
3 805201509 螺母M24 Nut 8 GB/T6170-1987 GB/T889.1-2000
4 805338291 垫圈 24(达克罗) Washer 8 GB/T97.1-2002 GB/T97.1-2002
5 800105108 驱动桥总成 Drive Bridge 1 PS75.67G
6 805046689 螺栓 M24×200(达克罗) Bolt 8 GB/T5782-2000 GB/T5782-2000
