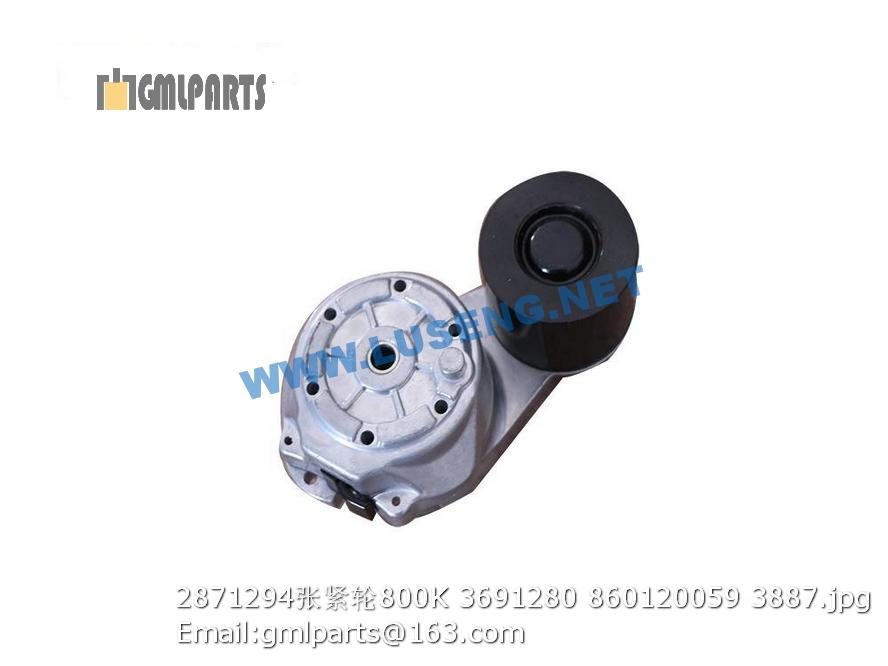

3691280 860120059 2871294 PULLEY 800K

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲251800152-101516-01 开口销4×20 Pin Shaft 2 GB91-86
2 ▲251800152-101516-02 垫圈12 Washer 2 GB97.2-85
3 ▲251800152-101516-03 圆肩销 Pin 2 DF-32-01
4 ▲251800152-101516-04 动臂阀杆 Slide Valve 1 GDF-32Ⅲ-03a
5 ▲251800152-101516-05 压板 Plank 2 GDF-32-04
6 ▲251800152-101516-06 CK28防尘圈 Dust Ring 2 CK28
7 ▲251800152-101516-07 垫圈 Washer 2 GDF-32-02
8 ▲251800152-101516-08 O形圈27.7×3.55 O-ring 2 GB3452.1-82
9 ▲251800152-101516-09 O型圈11.8×2.1 O-ring 1 GB3452.1-82
10 ▲251800152-101516-10 测压口堵头 Screw Plug 1 GDF-32-18
11 ▲251800152-101516-11 O形圈31.5×3.55 O-ring 2 GB3452.1-82
12 ▲251800152-101516-12 单向阀座 Single Direction Seat 2 GDF-32-05
13 ▲251800152-101516-13 单向阀弹簧 Single Direction Spring 2 GDF-32-07
14 ▲251800152-101516-14 单向阀 Single Direction Valve 2 GDF-32-08
15 ▲251800152-101516-15 O形圈32×3.1 O-ring 1 GB1235-76
16 ▲251800152-101516-16 螺塞 Screw Plug 1 DF-32-20A
17 ▲251800152-101516-17 垫板 Plank 2 GDF-32-09A
18 ▲251800152-101516-18 弹簧压座 Spring Seat 2 GDF-32-11
19 ▲251800152-101516-19 钢球7/16″ Steel Ball 2 GB308-77
20 ▲251800152-101516-20 弹簧 Spring 1 407428
21 ▲251800152-101516-21 弹簧座 Spring Seat 1 GDF-32-15
22 ▲251800152-101516-22 端盖 End Cover 1 GDF-32-14B
23 ▲251800152-101516-23 端盖橡胶塞 End Cover Rubber Stuff 1 GDF-32-20
24 ▲251800152-101516-24 端盖橡胶塞 End Cover Rubber Stuff 1 GDF-32-19
25 ▲251800152-101516-25 端盖 End Cover 1 GDF-32-12B
26 ▲251800152-101516-26 螺栓M8×20 Bolt 8 GB21-76
27 ▲251800152-101516-27 垫圈8 Washer 8 GB93-76
28 ▲251800152-101516-28 回位弹簧 Spring 1 GDF-32-16
29 ▲251800152-101516-29 弹簧座 Spring Seat 1 GDF-32-10a
30 860117810 GDF32-17.5主安全阀(浙江高宇)(备件) safety value 1
31 ▲251800152-101516-31 O形圈21.2×2.65 O-Ring 1 GB3452.1-82
32 ▲251800152-101516-32 螺塞 Screw Plug 1 GDF-25-18B
33 ▲251800152-101516-33 主阀体 Main Valve Body 1 GDF-32-01C
34 ▲251800152-101516-34 垫圈10 Washer 8 GB93-87
35 ▲251800152-101516-35 螺栓M10×60 Bolt 8 GB5782-86
36 ▲251800152-101516-36 过载阀体 Over Loading Valve 2 ZL50106C1-01
37 ▲251800152-101516-37 O形圈32×3.1 O-Ring 2 GB1235-76
38 ▲251800152-101516-38 O形圈28×3.1 O-Ring 2 GB1235-76
39.1 860117811 GDF32-17.5高压过载阀(浙江高宇)(备件) over loading value 1
39.2 860117812 GDF32-17.5低压过载阀(浙江高宇)(备件) over loading value 1
40 ▲251800152-101516-40 螺钉M6×11 Bolt 8 GB67-85
41 ▲251800152-101516-41 转斗阀杆 Tilt Plunger 1 GDF-32Ⅲ-06a
1 805000727 螺栓M10X25 Bolt 12 GB/T5783-2000
2 805300014 垫圈 10 Washer 12 GB/T93-1987
3 250400245 盖板 Cover 1
4 250400246 垫片 Washer 1
5 805000022 螺栓M16X25 Bolt 1 GB/T5783-2000
6 805301411 垫圈 16 WASHER 1 Q/SC1294-2000
7 803166395 液位计 Gauge Assy Level 1
8 803164329 液压油回油滤清器 FILTER 1 XGHL7-700×10
9 805000017 螺栓 M8×25 bolt 10 GB/T5783-2000
10 805300010 垫圈 8 Washer 10
11 252900256 盖板 Cover 1
12 252900257 垫片 Washer 1
13 803164217 回油滤清器 Filter Assy 1
14 801100122 O形密封圈82.5X3.55 O-Ring 1 GB/T3452.1-1992
15 805002238 螺柱M6X30 Bolt 4 GB/T901-1988
16 805300030 垫圈 6 Washer 6 4 GB/T93-1987
17 805200053 螺母 M6 Nut M6 4
18 803164216 吸油滤清器 Filter Assy 1
19 250400278 盖板 Cover 1
20 250400279 垫片 Washer 1
21 252903894 油箱体 Tank 1
803164230 空气滤清器 Air Filter Assy
803166395 液位计 Gauge Assy Level
