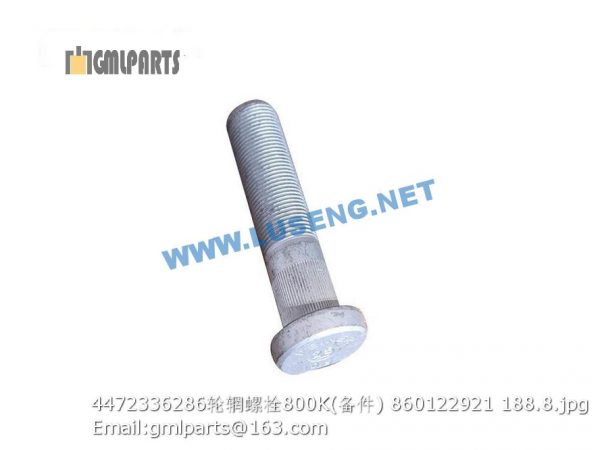

4472336286 bolt 800K 860122921

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 253101082 前车架 Front Chassis 1
2 253100187 前罩 Front Cover 1
3 805000033 螺栓M8×16 Bolt 4 GB/T5783-2000
4 805300010 垫圈 8 Washer 4
5 805300069 垫圈 8 Washer 8 4
6 253102439 翻斗缸车架销 Pin 1
7 805000022 螺栓M16X25 Bolt 9 GB/T5783-2000
8 805300011 垫圈 16 Washer 17 GB/T 93-1987
9 253102301 垫片 SHIM 9
10 253100829 调整垫片 Shim 4
11 253102846 动臂-前车架销 Pin 2
12 253100830 调整垫片 Shim 8
13 253102441 动臂缸-前车架销 Pin 2
14 251600109 上铰接销 Upper Articulation Pin 1
15 251600106 衬套 Shaft Bushing 1
16 251600101 隔套 Shaft Bushing 1
17 252200269 上销轴承盖 Bearing 1
18 252200270 调整垫片 Adjusting Shim 8
19 252200271 调整垫片 Adjusting Shim 8
20 805000040 螺栓M16×60 Bolt 8 GB/T5783-2000
21 800511332 轴承32220 Bearing 4 GB/T297-1994
22 803164072 密封圈B120×150×12D Seal 2 GB9877.1-88
23 251600100 销底盖 Cover 1
24 251600107 螺栓 Bolt 4
25 251600108 垫圈 Washer 4
26 252200322 下铰接销 Lower Articulation Pin 1
27 252200273 下销上盖 Cover 1
28 805000700 螺栓M16X120 Bolt 8 GB/T5782-2000
29 252200272 下销下盖 Bearing Cap 1
30 803164083 密封圈B100×125×12 SEAL RING 2
31 253100873 前车架润滑管路 Lubrichtion Pipeline of The Front Chassis System 1
32 253100188 转向销 Pin 4
33 801100336 黄油嘴M10X1 Grease Nipple 2 JB/T7940.1-1995
34 252101316 调整垫片 Adjusting Shim 2
35 805000852 螺栓M20×40 Bolt 1 GB/T5783-2000
36 805300023 垫圈 20 Washer 20 1 GB/T93-1987
37 250400150 垫圈 WASHER 1
1 253100968 动臂销油管 Oil Pipe 2
2 253100963 转斗销油管 Oil Pipe 1
3 253100966 油管 Oil Pipe 2
4 253101374 传动轴油管 Oil Pipe 1
5 803604578 线卡φ10 ply-yarn drill φ10 26
6 805000033 螺栓M8×16 Bolt 16 GB/T5783-2000
7 805301283 垫圈8 Lock washer 16 GB/T93-1987
8 805301353 垫圈8 Washer 16 GB/T97.1-2002
9 801100336 黄油嘴M10X1 Grease Nipple 5 JB/T7940.1-1995
10 803163960 接头体6 Pipe Connection 8 GB/T5625.2-2008
11 803163961 接头体6 Pipe Connection 8 GB/T5631.2-1985
12 805200165 锁紧螺母6 Nut 8 GB/T5649-1985
13 805300037 垫圈10 Washer 8 JB/T982-1977
14 803604568 线卡 Wires Support 2
15 801100339 油杯 M10×1 801100339 2 JB/T7940.2-1995
