Description

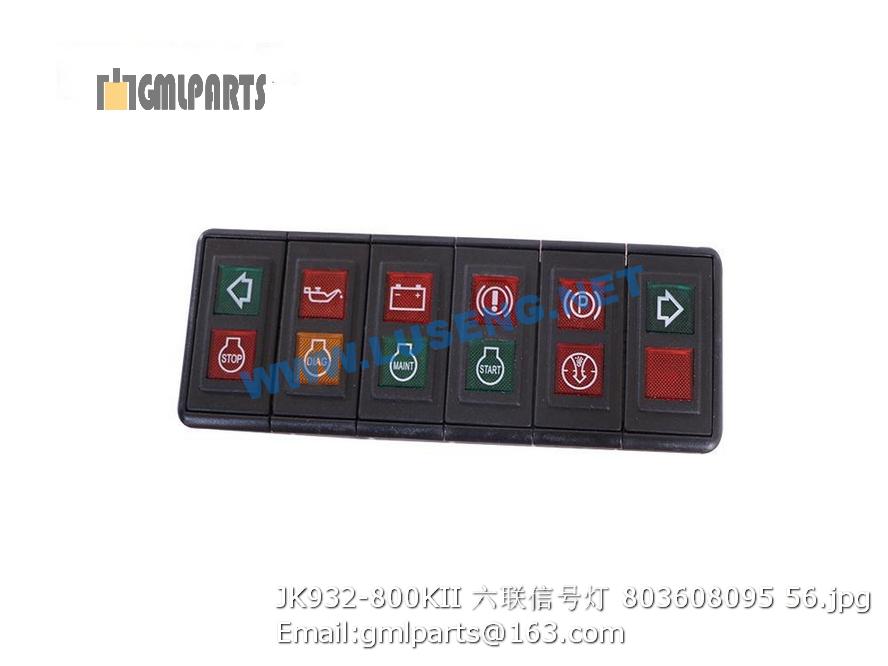

803608095 JK932-800KII Warning Lamp LW800KN XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800350685-0201 垫密片 Gasket 1
2 ▲800350685-0202 调整垫片 Adjusting washer 1
3 ▲800350685-0203 轴承31313 Bearing 31313 1 GB/T297-1994
4 ▲800350685-0204 轴承隔套 Bearing spacer 1
5 ▲800350685-0205 螺母 M27X2 Nut M27X2 1 GB/T6173-2000
6 ▲800350685-0206 止推螺栓 Thrust bolt 1
7 ▲800350685-0207 螺母 M16X1.5 Nut M16X1.5 8 GB/T6187-2000
8 ▲800350685-0208 差速器螺母 Differential nut 2
9 ▲800350685-0209 轴承32216 Bearing 32216 2 GB/T297-1994
10 ▲800350685-0210 螺栓 Bolt 8
11 ▲800350685-0211 差速器大半壳 Differential half shell 1
12 ▲800350685-0212 被动螺旋伞齿轮 Passive spiral bevel gear 1
13 ▲800350685-0213 瓦盖 Vagay 2
14 ▲800350685-0214 锁紧片 Locking piece 2
15 ▲800350685-0215 垫圈 10 Washer 10 2 GB/T93-1987
16 ▲800350685-0216 螺栓M10X1X20 Bolt M10X1X20 2 GB/T32.3-1988
17 ▲800350685-0217 行星齿轮 Planetary gear 4
18 ▲800350685-0218 行星齿轮垫片 Planetary gear spacer 4
19 ▲800350685-0219 垫圈22 Washers 22 4 GB/T97.2-2002
20 ▲800350685-0220 螺栓M22X90 Bolt M22X90 4 GB/T32.1-1988
21 ▲800350685-0221 差速器小半壳 Differentials less than half shell 1
22 ▲800350685-0222 螺栓 Bolt 12
23 ▲800350685-0223 螺母M14X1.5 Nut M14X1.5 12 GB/T6187-2000
24 ▲800350685-0224 半轴齿轮垫片 Side gear washer 2
25 ▲800350685-0225 半轴齿轮 Axle Gear 2
26 ▲800350685-0226 十字轴 Cross shaft 1
27 ▲800350685-0227 托架 Bracket 1
28 ▲800350685-0228 销 14X50 Pin 14X50 2 GB/T119.2-2000
29 ▲800350685-0229 轴承+挡圈80 Bearing + Collar 80 1 GB/T894.1-1986
30 ▲800350685-0230 锁紧片 Locking piece 1
31 ▲800350685-0231 轴承 31314 Bearing 31314 1 GB/T297-1994
32 ▲800350685-0232 主动螺旋伞齿轮 Spiral bevel gear 1
33 ▲800350685-0233 垫片 Gasket 1
34 ▲800350685-0234 轴承座 Bearing 1
