Description

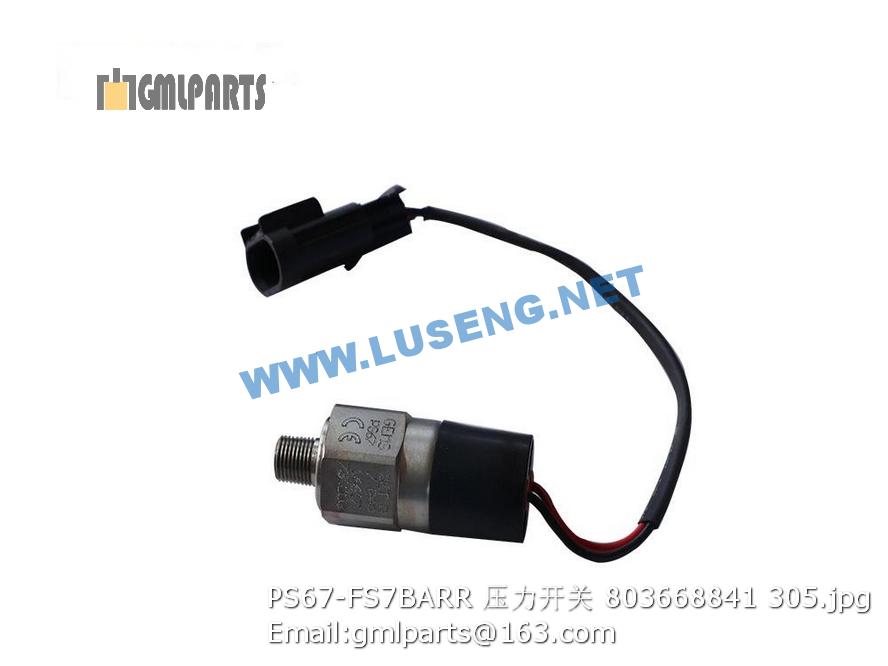

803668841 PS67-FS7BARR SENSOR XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226802576 发动机罩 Engine hood 1
2 226803280 铰链 Hinge 2
3 805300017 垫圈10 Washer 12 GB/T97.1-2002
4 805300014 垫圈 10 Washer 12 GB/T93-1987
5 805000062 螺栓 M10×35 Bolt 12 GB/T 5783-2000
6 801100340 油杯M6×1 grease cup 2
7 226802624 右侧板焊接总成 Right-board 1
8 805000714 螺栓 M10×20 Blot 8 GB/T5783-2000
9 805301373 垫圈10(达克罗) Washer 8
10 226802620 左侧板焊接总成 Left-board 1
11 805600016 开口销4×40 Split-pin 2 GB/T 91-2000
12 226803416 带孔安装销 Hole-pin 1
13 803604727 发动机罩支撑系统 Engine cover support system 1
14 226800231 带孔安装销 Hole-pin 1
15 801938349 减震块 Absorber 2
16 805200048 螺母 M10 Nut 2 GB/T6170-2000
1 819947419 客服热线标志 1
2 800105151 防冻液标记 1
3 239900224 燃油加油标记 DECAL OF FUEL REFILLING 1 F1005
4 227002148 XCMG右标记 Right decal 1 XS142JⅢ.17-2
5 239900241 注润滑脂处标志 Grease filling sign 1 F1011
6 239900218 起吊处标记 HOOK decal 4 F1012
7 239900219 固定处标志 4
8 227002150 XS142J右标记 Right decal 1 XS142JⅢ.17-4
9 801902643 安全标记 (铝) safety decal 2 A1002
10 226802307 放水标识 Discharged decal 1 XS202J.17-6
11 281200944 逃生标识 decal of fleeing for one’s life 1 ET110.14-10
12 819906042 低温放水标志 OUTLET FOR THE LOW TEMPERATURE WATER 1 A7272B
13 226800336 轮胎气压标记 Indication of tyre pressure 2 XS202J.17-3
14 228700142 液压油位标示 The hydraulic oil level 1 XS202.17-2
15 228600227 徐工集团大标记 XCMG MAIN LOGO 1
16 239900225 液压油加油标记 HYDRAULIC OIL LEVEL 1 F1004
17 228600230 徐工集团小标记 XCMG SMALL LOGO 1
18 227000168 XS142J小标记 decal “XS142J” 1
19 227001692 铭牌 Name plate 1 XS142J.17-1B
20 226802649 刹车油量示警 Alarm for brake oil level 1
21 227002151 XS142J左标记 Left decal 1 XS142JⅢ.17-5
22 227002025 保养分布图 Keep fit map 1 XS142JⅢ.17-1
23 239900227 防烫标志 1
24 227002149 XCMG左标记 Left decal 1 XS142JⅢ.17-3
25 281200948 安全标识 safety decal 1 ET110.14-14
