Description

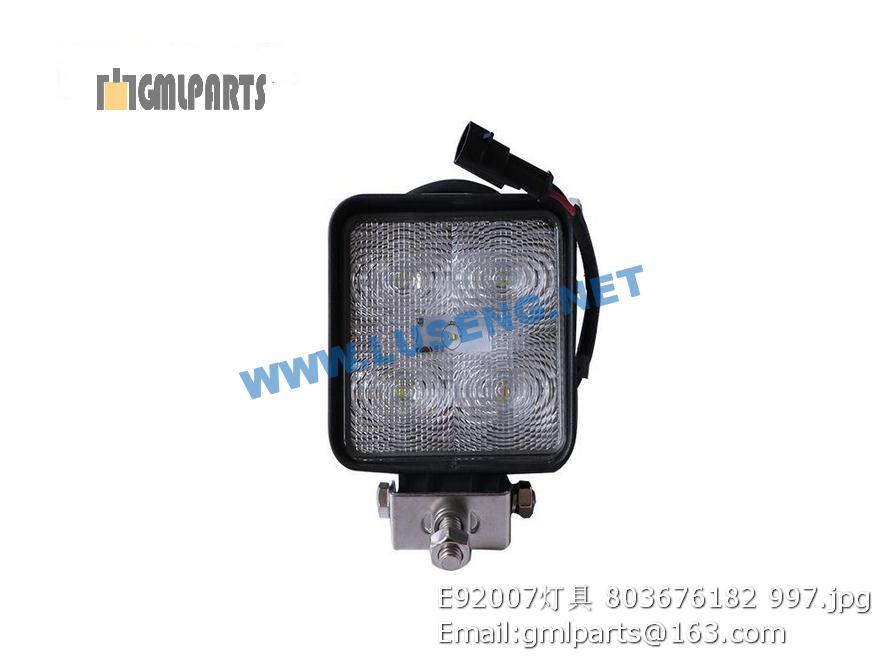

803676182 E92007 LAMP XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲800302339-404301 螺栓M22×112 Bolt M22 × 112 4
2 ▲800302339-404302 弹垫22 Spring washer 22 4
3 ▲800302339-404303 外钳 Outer clamp 1
4 ▲800302339-404304 螺栓 M20×1.5×53 Bolt M20 × 1.5 × 53 4
5 ▲800302339-404305 弹垫20 Spring washer 20 4
6 ▲800302339-404306 开口销φ2.5X20 Cotter pin φ2.5X20 2
7 ▲800302339-404307 螺栓M10×128 Bolt M10 × 128 2
8 ▲800302339-404308 弹垫10 Spring washer 10 2
9 ▲800302339-404309 管接头体 Tube fittings 1
10 ▲800302339-404310 管接头螺栓 Pipe joint bolt 1
11 ▲800302339-404311 垫圈φ15.2×φ23×2 Washer φ15.2 × φ23 × 2 1
12 ▲800302339-404312 垫圈φ12.5×24.5×2 Washer φ12.5 × 24.5 × 2 1
13 ▲800302339-404313 矩形密封圈φ75×φ85×5 Rectangular ring φ75 × φ85 × 5 4
14 ▲800302339-404314 活塞φ75×48 Pistons φ75 × 48 4
15 ▲800302339-404315 制动片 Brake pads 2
16 ▲800302339-404316 防尘帽 Dust cap 4
17 ▲800302339-404317 卡环φ80×1.65×5 Snap ring φ80 × 1.65 × 5 4
18 ▲800302339-404318 橡皮帽 Rubber cap 2
19 ▲800302339-404319 放气嘴M10×1 Put the gas nozzle M10 × 1 2
20 ▲800302339-404320 钢球φ8 Ball φ8 2
21 ▲800302339-404321 0型密封圈 20×2.4 0-ring 20 × 2.4 2
22 ▲800302339-404322 内钳 The clamp 1
1 800902530 自动排水调压阀 Pressure Governor 1
2 231501773 调压阀安装板 Borad 2
3 805300010 垫圈 8 Washer 8
4 231500276 接头 Connector 1
5 801100032 O型密封圈10.6×2.65 O-sealing ring 4
6 226800220 接管 Pipe 1
7 800901166 接头 Connector 1
8 805300032 垫圈 22 Washer 14 JB/T982-1977
9 800901285 气管 Air hose 1
10 231500284 橡胶管 Latex pipe 1
11 859907948 喉箍 C10-16 Clamp 4
12 231500285 橡胶管 Latex pipe 1
13 800901286 气管 Air hose 1
14 800901287 气管 Air hose 1
15 805000017 螺栓 M8×25 bolt 4 GB/T5783-2000
16 800901175 气制动阀 Air braking valve 1
17 801100029 O型密封圈7.5×1.8 O-sealing ring 6
18 800901176 接头 Connector 4
19 800901279 空气加力泵 Booster assembly 2
20 805300001 组合垫14 Combination washer 1
21 800901169 接头体 Joint body 1
22 805000074 螺栓 M12×20 Bolt 4 GB/T5783-2000
23 805300018 垫圈12 washer 12 8 GB/T93-1987
24 800901280 储气筒 Air reservoir 1
25 800901189 安全阀 Safety valve 1
26 805300026 垫圈16 Washer 1
27 800901188 接头体 Joint body 1
28 805300045 垫圈 18 Washer 18 1 JB/T1002-1977
29 800901155 自动放水阀 Water discharging valve 1
30 805300020 垫圈12 Washer 4 GB/T97.1-2002
31 226300475 三通接头 Three-way connector 1
32 226300572 接头 Connector 1
33 805000046 螺栓 M6×14 Bolt 4
34 805300030 垫圈 6 Washer 6 4 GB/T93-1987
35 800901171 油杯体 Oil cup 1
36 226800449 抱箍 Hoop 2
37 231500277 三通接头 Three-way connector 4
38 800902639 刹车管 Braking pipe 8
39 231501441 接头 Connector 8
40 805300025 垫圈 12 Washer 20
41 803165236 刹车管 Braking pipe 1
42 800901288 刹车管 Braking pipe 1
43 800901181 三通接头 Connector 2
44 805000715 螺栓 M12×25 Bolt 4 GB/T 5783-2000
45 800901289 气管 Air hose 1
46 800902640 刹车管 Braking pipe 1
47 800902641 刹车管 Braking pipe 1
48 226800221 接头 Connector 1
