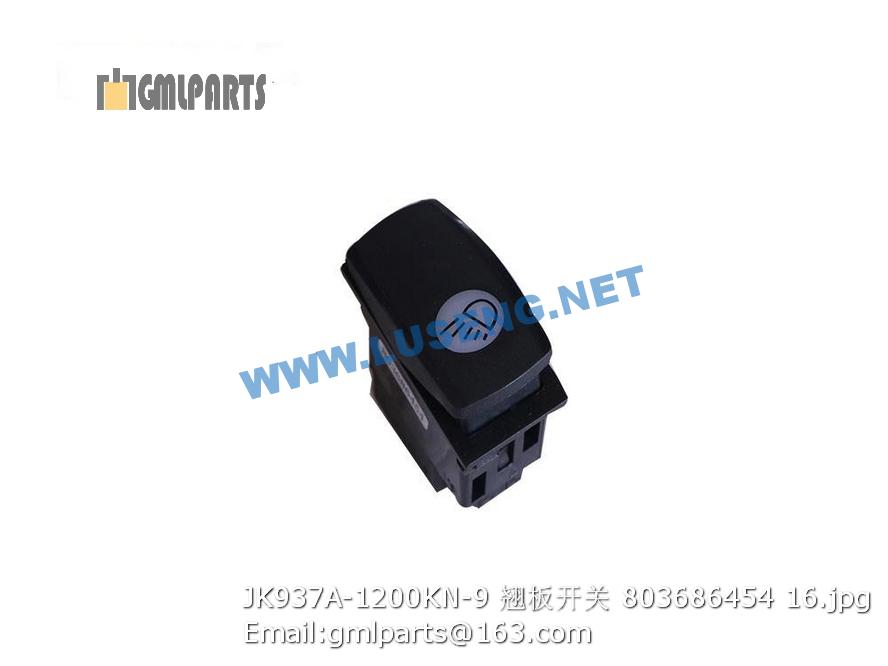

803686454 JK937A-1200KN-9 switch xcmg

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805000013 螺栓 M16×35 Bolt 10 GB/T5783-2000
2 805300011 垫圈 16 Washer 16 GB/T 93-1987
3 805300013 垫圈16 Washer 10 GB/T 97.1-2002
4 225702019 护套 Jacket 2
5 225701659 水箱 water tank 1
6 225701561 油箱总成 Oil tank 1
7 839901542 天窗把手 handle 2 D0-5884
8 805300020 垫圈12 Washer 19 GB/T97.1-2002
9 805300018 垫圈12 washer 12 19 GB/T93-1987
10 805000715 螺栓 M12×25 Bolt 7 GB/T 5783-2000
11 805000014 螺栓 Bolt 6
12 225702016 水箱安装板 Water tank bracket 2
13 227302627 水滤器 Water filter 1
14 226500782 接头 Joint 1
15 225701606 水泵 water punp 2
16 805100138 螺钉M6×25 Bolt 8
17 805300083 垫圈6 Washer 8
18 800752923 三通球阀 Change valve 2
19 225702127 转换接头 Joint 6
20 225702177 接头 Joint 5
21 226500784 接头 Joint 2
22 800752922 安全卸荷阀 Safety valve 1
23 226500795 转换接头 Joint 1
24 800752572 电磁阀（24V) Electromagnetic valve 1
25 230503092 直角接头 Joint 1
26 225702022 加热系统 The system of calefaction 1
27 225702168 PVC钢丝软管φ13×1420 Water hose 1
28 225701590 水管φ13×5200 Water tube 2
29 225702169 PVC钢丝软管Φ13×310 Water hose 1
30 225702170 PVC钢丝软管φ13×850 Water hose 2
31 225702171 PVC钢丝软管φ13×1830 Water hose 2
32 226500810 胶管Φ13×1230 Hose 1
33 225702172 PVC钢丝软管φ13×750 Water hose 3
34 226500787 三通接头 Joint 3
35 805000057 螺栓 M6×60 Bolt 28
36 805300030 垫圈 6 Washer 6 28 GB/T93-1987
37 805300029 垫圈 6 Washer 6 28 GB/T97.1-2002
38 805200053 螺母 M6 Nut M6 28
39 225702173 PVC钢丝软管Φ13×120 1
40 226500809 胶管Φ13×500 Hose 1
41 225701596 直接头 Joint 1
42 226500799 接头 Joint 2
43 225702180 直角转换接头 Joint 1
44 225702973 水泵安装支架 1
45 800702582 黄铜球阀1/2 Vale 4
46 805300032 垫圈 22 Washer 16 JB/T982-1977
47 225702080 接头 Joint 3
48 225701591 洒水管塞 Water sprinkling pipe plug 14
49 225701921 后洒水管 1
50 800752560 喷头 Nozzle 9
51 225702020 小喷头 spraying 27
52 225701558 吊架 Carrier 2
53 225702073 洒油管 oil sprinkling tube 1
54 225702069 单刷油板 single plank of brush oil 1
55 805000018 螺栓 M8×20) Elbow 6
56 805300010 垫圈 8 Washer 12
57 805300069 垫圈 8 Washer 8 12
58 226500652 洒油管焊接 jointing of oil sprinkling tube 4
59 225702068 双刷油板 double plank of brush oil 4
60 225702174 PVC钢丝软管φ13×1360 Water hose 1
61 226500808 洒油管 Hose 1
62 803167887 管夹 Pipe clip 2
63 803163353 底板 soleplate 2
64 225702175 PVC钢丝软管φ13×480 Water hose 2
65 225702118 合页 Hinge 2
66 805100394 螺钉M8×20 screw 6 GB/T68-2000
67 225701580 压板 Pressing plate 13
68 225701581 管夹 Pipe clip 26
69 805100372 螺钉 M6×20 Bolt 4 GB/T818-2000
70 225701593 水管φ13×1000 Water tube 1
71 801902705 喉箍 Clamp 38
72 800701174 洒水接头 Nozzle 2
73 226500789 胶管Φ13×1000 Hose 1
75 225702086 前联板 join plank 2
76 805000716 螺栓M12X30 Bolt 4 GB/T5783-2000
77 225701599 接头 Joint 2
78 225702178 接头 Joint 2
79 800702224 水滤出水接头 jiont 2
80 805300024 垫圈14 Washer 2
81 225702179 三通接头 Joint 1
82 226500802 护套 Jacket 1
83 225702100 洒油管 Hose 1
84 225702249 球阀标识 Valve logo 1
85 225702439 右支板 right plate 1
86 225702440 左支板 left plate 1
87 805000026 螺栓 M16×45 Bolt 8 GB/T 5783-2000
88 225701615 接头 Joint 2
89 805200052 螺母M20 Nut 2 GB/T 6170-2000
90 805200049 螺母 M12 Nut 2 GB/T6170-2000
