Description

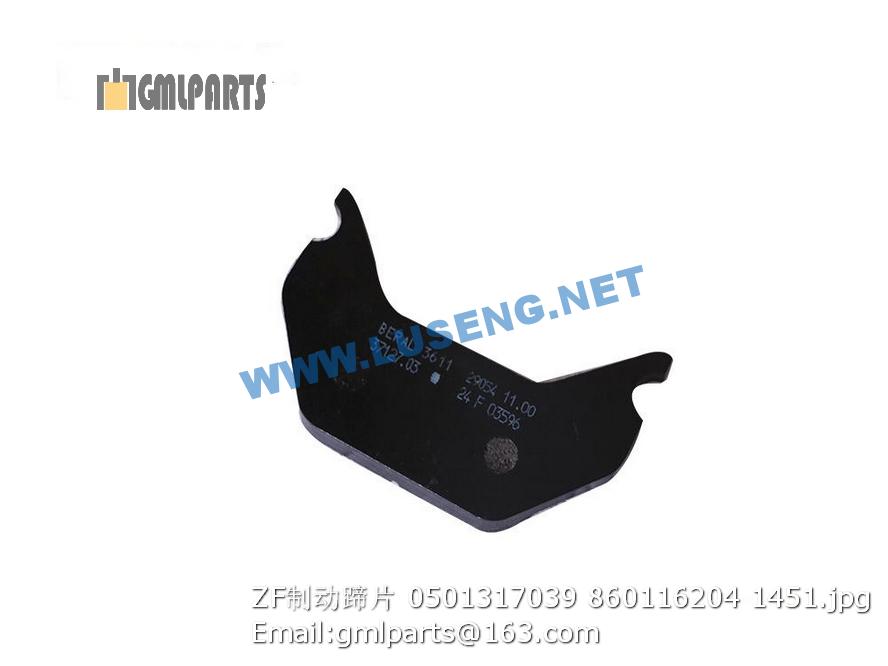

860116204 ZF BRAKE SHOE 0501317039

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 230900565 驾驶室 Cab 1
2 230901636 调整垫圈 6
3 227000176 橡胶垫 6
4 805000715 螺栓 M12×25 Bolt 12 GB/T 5783-2000 GB/T5783-2000
5 805300018 垫圈12 washer 12 12 GB/T93-1987 GB/T93-1987
6 801906429 减振器GHC900 Shock absorber block 4
7 230500183 调整垫圈 6
8 805201501 螺母 M20 NUT 6 GB/T889.1-2000 GB/T889.1-2000
9 805001955 螺栓M20×160 Bolt 6 GB/T5782-2000
10 805300112 垫圈 20 Washer 20 6 GB/T97.1-2002 GB/T97.2-2002
11 801906430 减振器GHC1100 Shock absorber block 2
1 ▲230500680-6-2-1 圆螺母 Round nut 4
2 ▲230500680-6-2-2 橡胶垫 Rubber Washer 4
3 ▲230500680-6-2-3 橡胶垫 Rubber Washer 4
4 805300117 垫圈8 Washer 10 GB/T96.1-2002
5 805300010 垫圈 8 Washer 4
6 805000018 螺栓 M8×20) Elbow 4
7 ▲230500680-6-2-4 M8注塑螺母帽 Injection screw cap 14
8 860118278 前右侧玻璃 Left front side glass 1
9 860118279 右门下玻璃 Lower grass of the right door 1
10 860118280 右门上玻璃 Upper grass of the right door 1
11 860118281 右门后玻璃 Rear glass of the right door 1
12 860118282 后下右玻璃 Rear-low-right grass 1
13 860118283 后上右玻璃 Rear-top-right grass 1
14 860118284 后上玻璃 Rear-top grass 1
15 860118285 后上左玻璃 Rear-top-left grass 1
16 860118286 后下玻璃 Rear-low grass 1
17 860118287 后下左玻璃 Rear-low-left grass 1
18 ▲230500680-6-2-5 密封垫 Seal washer 2
19 860118288 锁碰头 Lock striker 2
20 805100275 螺钉 M5×16 Slotted 6 GB/T818-2000
21 860118289 左门后玻璃 Rear grass of the left door 1
22 860118290 左门下玻璃 Lower grass of the left door 1
23 ▲230500680-6-2-6 垫 Plate 2
24 ▲230500680-6-2-7 橡胶垫 Rubber Washer 2
25 ▲230500680-6-2-8 垫 Plate 2
26 860118291 左门上玻璃 Plate 1
27 805201502 螺母 M8 6
28 860118292 前左侧玻璃 Front-left-side grass 1
29 860118293 前挡风玻璃 Front glass 1
30 805000137 螺栓M8X40 Bolt 4 GB/T5783-2000
31 ▲230500680-6-2-9 尼龙垫 Nylon plate 8
32 ▲230500680-6-2-10 轴 Shaft 4
33 ▲230500680-6-2-11 圆盖 Round lid 4
34 860118294 铰链板 Hinge plank 4
35 805201543 螺母M10 Nut M10 4 GB/T923-1988
36 805300017 垫圈10 Washer 4 GB/T97.1-2002
37 860118295 右把手 Right handle 1
38 860118296 左把手 Left handle 1
