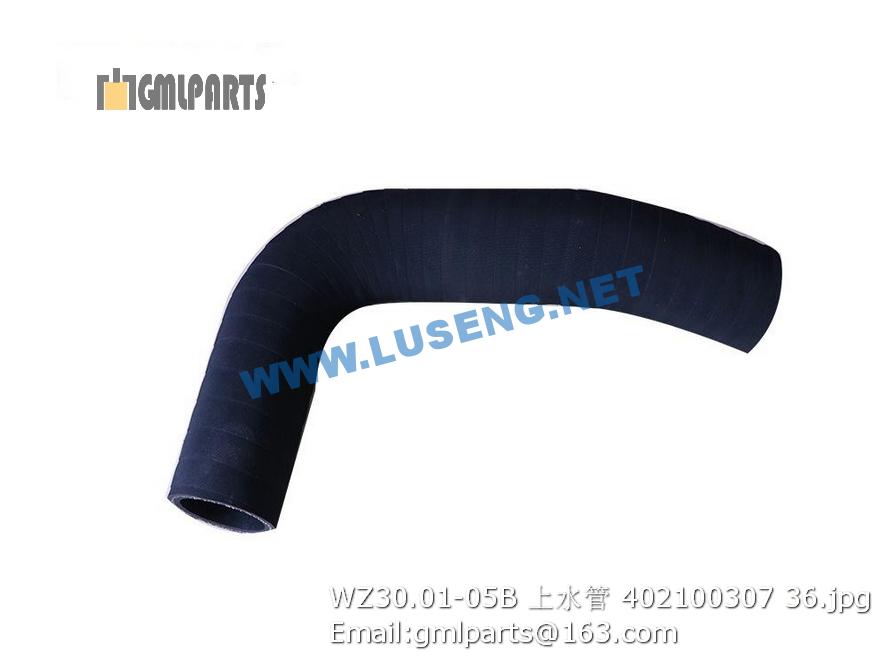

402100307 WZ30.01-05B Upper water pipe
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 800302284 轮胎 Tyre 2
2 800345331 轮辋 Circular rim 2
3 800138290 驱动桥 Wheel axle 1
4 805041390 螺栓 M24×260-10.9-ZnD Bolt 8 GB/T5782-2000
5 805300021 垫圈24 Washer 16 GB/T97.1-2002
6 805201509 螺母M24 Nut 8 GB/T6170-1987
7 ▲228302523-0401 轮辋螺母M22X1.5 Nut 24
1 ▲800138290-0101 螺塞 Plug 2 GQQ1514-21
2 ▲800138290-0102 组合垫圈 Compound Seal washer 2 JB982-77
3 ▲800138290-0103 端盖 Cover 2 ZL50-4B
4 ▲800138290-0104 钢球 Steel ball 2 GB308-84
5 ▲800138290-0105 O型圈 O-Ring 2 GB3452.1-82
6 ▲800138290-0106 钢球 Steel ball 6 GB308-84
7 ▲800138290-0107 行星轮轴 Planetary Pin 6 PR90·20.4-8
8 ▲800138290-0108 行星轮架 Spider 2 PR90·20.4-3A
9 ▲800138290-0109 行星轮垫片 Washer 12 ZL60·06-14
10 ▲800138290-0110 隔套 Sleeve 12 PR90·20.4-15
11 ▲800138290-0111 滚针 Roll 186 GB309-84
12 ▲800138290-0112 太阳轮 Sun Gear 2 PR90·20.4-6
13 ▲800138290-0113 内齿轮 Gear 2 PR90·20.4-9
14 ▲800138290-0114 轴承30224 Bearing 2 GB297-84
15 ▲800138290-0115 轮毂 Hub 2 PR75·27-1
16 ▲800138290-0116 O型圈 O-Ring 2 GB1235-76
17 ▲800138290-0117 轴承32026 Bearing 2 GB297-84
18 ▲800138290-0118 螺栓 Bolt 18 GB5783-86
19 ▲800138290-0119 垫圈 Washer 18 GB93-87
20 ▲800138290-0120 螺塞 Plug 6 ZL30·06-2
21 ▲800138290-0121 组合垫圈 Compound Seal washer 6 JB982-77
22 ▲800138290-0122 定位销 Pin 4 GB119-86
23 ▲800138290-0123 螺栓 Bolt 32 GB5786-86
24 ▲800138290-0124 垫圈 Washer 32 GB93-87
25 ▲800138290-0125 O型密封圈 O-Ring 2 PR90·20.4-2
26 ▲800138290-0126 圆螺母 Nut 4 ZL60·06-37
27 ▲800138290-0127 垫圈 Washer 2 GB858-88
28 ▲800138290-0128 组合垫圈 Compound Seal washer 2 JB982-77
29 ▲800138290-0129 螺塞 Plug 2 GQQ1514-22
30 ▲800138290-0130 轮辋螺母 Nut 24 PS75·67G-1
31 ▲800138290-0131 轮辋螺栓 Bolt 24 PS75·67G-2
32 ▲800138290-0132 油封 Oil Seal 2 HG4-692-67
33 ▲800138290-0133 密封盖 Cover 2 PR75·27B-1
34 ▲800138290-0134 垫圈 Washer 24 GB93-87
35 ▲800138290-0135 螺栓 Bolt 24 GB5786-86
36 ▲800138290-0136 轴用挡圈 Circlip 2 GB894.1-86
37 ▲800138290-0137 太阳轮 Sun Gear 2 PR90·20.4-6
38 ▲800138290-0138 半轴 Shaft 2 PR75·27-2
39 ▲800138290-0139 桥壳总成 Housing Assembly 1 PR75·27B·2A
40 ▲800138290-0140 气嘴总成 Valve Assembly 1 BJ130-2401070
41 ▲800138290-0141 托架纸垫 Washer 1 PC40-1
42 ▲800138290-0142 垫圈 Washer 14 GB93-87
43 ▲800138290-0143 螺栓 Bolt 14 PR90·20.4-17
44 ▲800138290-0144 主减速器总成 Carrier Assembly 1 PS75·91·1
45 ▲800138290-0145 减速箱 Retarder 1 J6·3D
46 ▲800138290-0146 六角螺栓 Bolt 9 GB5785-86
47 ▲800138290-0147 马达支架 Motor Bracket 1 PS50·72B-1
48 ▲800138290-0148 干式多片制动器 Arrester 1 GDZ3033/PY100G
