Description

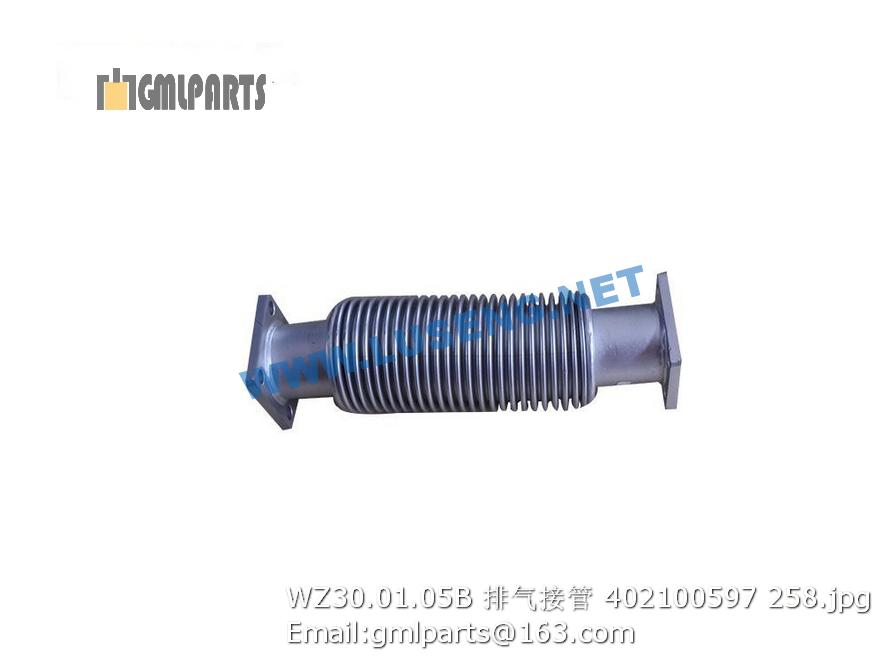

402100597 WZ30.01.05B Exhaust connecting pipe
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 228700169 油塞 Oil Plug 2
2 805300055 垫圈 30 WASHER 2 JB982-77
3 239900236 透气螺栓 Breath cap 1
4 801902798 减振块 Shock absorber 6 YLJ-19B
5 805000404 螺栓M12X45 Bolt 64 GB/T5782-2000
6 805301374 垫圈 12(达克罗) Bolt 86
7 805200098 螺母 M12 Nut 80 GB/T889.1-2000
8 228300755 压轮 Drum 1
9 805001925 螺栓M16×45 Bolt 40 GB/T5782-2000
10 805301286 垫圈16 Washer 48 GB/T93-1987
11 228300481 左轴承座 Bearing housing left 1
12 228300482 左偏心轴 Eccentricity shaft left 1
13 228300483 内轴承座 Bearing housing 2
14 800511396 振动轴承 Drum bearing 4 NJ322
15 228700157 橡胶套 Rubber sleeve 2
16 228700161 传动轴 Transmission shaft 1
17 228300484 右偏心轴 Eccentricity shaft right 1
18 228302280 外轴承座 Bearing housing outer 1
19 801101754 油封 1
20 228302281 框架轴承座 Frame bearing set 1
21 228302282 安装板 Connect plate 1
22 800511397 框架轴承 bearing 1 JM822049-90N01
23 805000061 螺栓 M16×65 Bolt 8 GB/T5782-2000
24 805300147 垫圈16 Washer 8
25 805200200 螺母 M16 Nut 8 GB/T889.1-2000
26 805000032 螺栓M12X60 Bolt 4 GB/T5782-2000
27 805301285 垫圈12 Washer 5 GB/T93-1987
28 228302283 马达连接圈 motor bracket 1
29 805000713 螺栓 M10×45 Bolt 8 GB/T5783-2000
30 228302279 锁片 Washer 4 GB/T859-1987
31 228302284 花键套 Spline sleeve 1
32 228302285 轴承压板 connection plate 1
33 801100314 O形密封圈Φ165×3.55 O-ring 1
34 803164151 O型圈387×7 O-ring 2 GB/T3452.1-2005
35 228300491 纸垫 Fibre 1
36 228300492 端盖 Cover 1
37 805001929 螺栓M12×35 Bolt 6 GB/T5782-2000
38 226802286 油位螺栓 Oil Lever Bolt 1
39 801902820 减振块 Shock absorber 4 YLJ-19C
40 803166351 油封 1
41 801101755 加油管 GREASE CUP 1
42 805000017 螺栓 M8×25 bolt 1 GB/T5783-2000
43 805300026 垫圈16 Washer 1
44 228300476 驱动板 Drive plate 1
45 228300477 支撑板 Support plate 1
46 805000189 螺栓M24X90 Bolt 4 GB/T5782-2000
47 805300021 垫圈24 Washer 20 GB/T97.1-2002
48 805200194 螺母 M24 Nut 8 GB/T 889.1-2000
49 800345332 减速器 Torque reducer support 1
50 805000051 螺栓 M16×40 Bolt 17 GB/T5783-2000
51 805300011 垫圈 16 Washer 17 GB/T 93-1987
52 800302482 球面螺母M22×1.5 Spherical Nut 10
53 228302718 右连接板 Connecting plate 1
54 228300479 调整垫 Shim 4
55 805001989 螺栓M24×110 Bolt 4 GB/T5782-2000
56 805002099 螺栓M24×40 BOLT 4 GB/T5783-2000
57 226800413 凸块壳 Cam 3
58 805001990 螺栓M24×130 Bolt 18 GB/T5782-2000
59 805201509 螺母M24 Nut 18 GB/T6170-1987
60 805301380 垫圈 24 WASHER 18 DIN6796
61 805000024 螺栓M12×50 Bolt 16 GB/T5782-2000
62 805200105 螺母M22 Nut 10 GB/T6173-2000
