Description

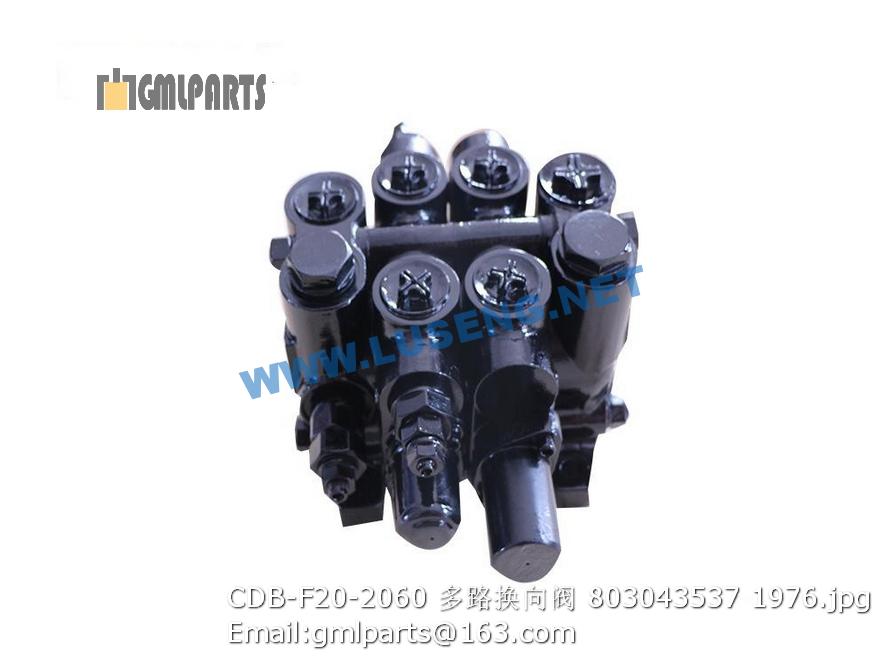

803043537 CDB-F20-2060 Multi-way Valve XT873

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
2 400700523 动臂缸销 Lift cyhnder pin 2 ZL20A.02.03
3 801100339 油杯 M10×1 801100339 7 JB/T7940.2-1995
4 400701871 垫片 cushion 5 JB/T7940.2-1995
5 805300018 垫圈12 washer 12 5 GB/T93-1987
6 805000715 螺栓 M12×25 Bolt 5 GB/T 5783-2000
7 400700521 动臂销 Lift arm pin 2 ZL20A.02.01
8 400300564 灯架 Lamp prolector 1 ZL15H.8.5
9 400701125 弹簧销5*60 pin 2 ZL20A.02-3
10 400700554 限位块 shield block 4 ZL20A.02-13
11 400700556 连杆销 Connecting rod pin 2 ZL20A.02-4
12 400700558 拉杆 lock link 1 ZL20A.02-6
13 402101983 转斗缸销 tilt cylinder pin 1 WZ30.8.2C
14 805300014 垫圈 10 Washer 6 GB/T93-1987
15 805000043 螺栓 M10×30 Bolt 6 GB/T 5783-2000
16 400701136 前盖板 front cover plate 1 ZL20A.1-8
19 805000018 螺栓 M8×20) Elbow 4
20 805300010 垫圈 8 Washer 4
21 400700531 定位板 check plate 2 ZL20A.02.06-1
22 400700533 转向缸销 front steering pin 2 ZL20A.02.06-2
23 805002107 螺栓M24*2*240 Bolt 4 GB/T5785-2000
24 805300021 垫圈24 Washer 4 GB/T97.1-2002
25 805200244 螺母 M24X2 Nut 4 GB/T6170-2000
2 805004736 螺栓M10*35 Bolt 16 GB/T5783-2000
3 805300014 垫圈 10 Washer 16 GB/T93-1987
4 801100339 油杯 M10×1 801100339 4 JB/T7940.2-1995
5 402100984 盖板 plate 4 WZ30.8.2-10
6 402100315 轴套 shaft bushing 4 WZ30.8.2-1
7 402100924 调整垫片 adjusting cushion 4 WZ30.8.2-11
8 402100925 调整垫片 adjusting cushion 8 WZ30.8.2-12
9 402100316 轴套 shaft bushing 1 WZ30.8.2-8
10 402100317 轴套 shaft bushing 1 WZ30.8.2-9
11 805400021 弹性垫圈45 Elastic clip ring 16
12 402100923 销轴 shaft 2 WZ30.8.2.3
13 402100934 衬套 Bush 4
14 402100931 销轴 shaft 2 WZ30.8.2-5
15 402100983 支腿总成 stabilizer 2 WZ30.8.2.2B
16 402100929 销轴 Pin shaft 2
17 402100933 销轴 shaft 2 WZ30.8.2-6B
18 402100906 支腿盘 stabilizer foot 2 WZ30.8.2.1
19 402102018 支腿 stabilizer 2 WZ30.8.2
