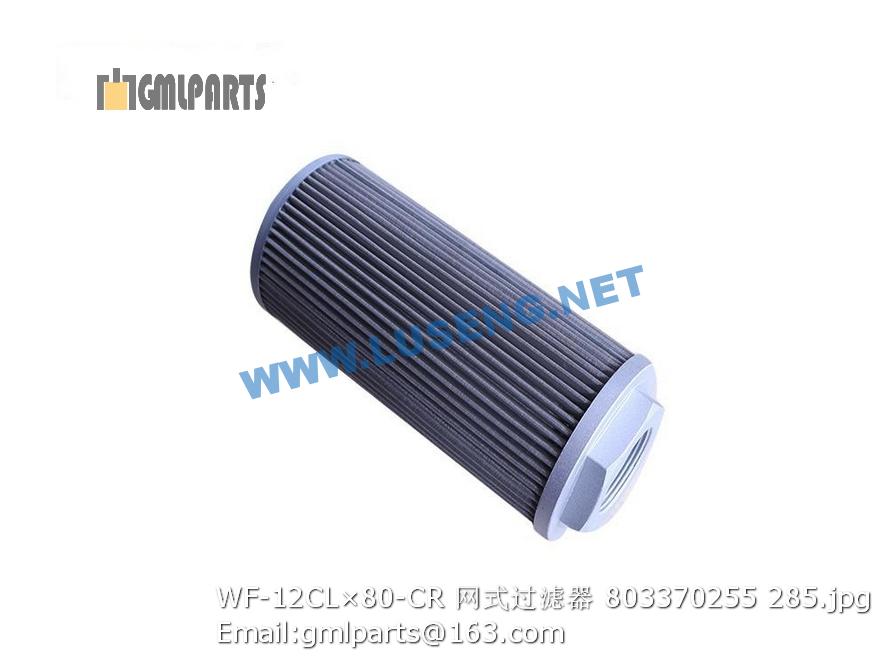

803370255 WF-12CL×80-CR FILTER XCMG

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 805000322 螺栓 M6×16 Bolt 14 GB/T5783-2000
2 805300029 垫圈 6 Washer 6 14 GB/T97.1-2002
3 805300030 垫圈 6 Washer 6 14 GB/T93-1987
4 228300597 发动机罩 Engine hood 1
5 226800547 折页 Hinge 2
6 805401267 挡圈10 Washer 4 GB/T894.2-1986
7 226800549 销轴 Pin 2
8 226800548 折页 Hinge 2
9 805000043 螺栓 M10×30 Bolt 24 GB/T 5783-2000
10 805300014 垫圈 10 Washer 24 GB/T93-1987
11 805000047 螺栓 M10×50 Bolt 1 GB/T 5783-2000
12 228700320 支撑筒 Support sleeve 1
13 228700316 套 Pin 2
14 228700317 销轴 Pin 2
15 801100340 油杯M6×1 grease cup 4
16 228700323 支撑杆 Supporting pole 1
17 228700310 固定板 Fixed plate 4
18 805300109 垫圈 5 Washer 8 GB/T93-1987
19 805000390 螺栓M5X12 Bolt 8 GB/T5783-2000
20 ▲228300597-0001 减振垫 Vibration reduction cushion 2 机罩带
21 228300595 左护板 Left cover plate 1
22 228300596 右护板 Right cover plate 1
23 805200048 螺母 M10 Nut 1 GB/T6170-2000
24 805300017 垫圈10 Washer 12 GB/T97.1-2002
25 228700309 连接销 Connect pin 2
26 228302372 护板 Cover 1
27 805000040 螺栓M16×60 Bolt 4 GB/T5783-2000
28 805300013 垫圈16 Washer 4 GB/T 97.1-2002
29 805300011 垫圈 16 Washer 4 GB/T 93-1987
30 228302330 框架焊接 Weld frame 1
31 228302348 盖板 Cover plate 1
32 805000033 螺栓M8×16 Bolt 2 GB/T5783-2000
33 805300010 垫圈 8 Washer 6
34 228700313 小盖板 Cover board 1
37 228700206 橡胶条 Rubber 2
38 805100064 螺钉 M8×20 Bolt 4 GB/T70.1-2008
39 228302373 护板 Cover 1
1 805000322 螺栓 M6×16 Bolt 14 GB/T5783-2000
2 805300029 垫圈 6 Washer 6 14 GB/T97.1-2002
3 805300030 垫圈 6 Washer 6 14 GB/T93-1987
4 228302439 发动机罩 Engine hood 1
5 226800547 折页 Hinge 2
6 805401267 挡圈10 Washer 4 GB/T894.2-1986
7 226800549 销轴 Pin 2
8 226800548 折页 Hinge 2
9 805000043 螺栓 M10×30 Bolt 24 GB/T 5783-2000
10 805300014 垫圈 10 Washer 24 GB/T93-1987
11 805000047 螺栓 M10×50 Bolt 1 GB/T 5783-2000
12 228700320 支撑筒 Support sleeve 1
13 228700316 套 Pin 2
14 228700317 销轴 Pin 2
15 801100340 油杯M6×1 grease cup 4
16 228700323 支撑杆 Supporting pole 1
17 228700310 固定板 Fixed plate 4
18 805300109 垫圈 5 Washer 8 GB/T93-1987
19 805000390 螺栓M5X12 Bolt 8 GB/T5783-2000
20 ▲228300597-0001 减振垫 Vibration reduction cushion 2
21 228300595 左护板 Left cover plate 1
22 228300596 右护板 Right cover plate 1
23 805200048 螺母 M10 Nut 1 GB/T6170-2000
24 805300017 垫圈10 Washer 12 GB/T97.1-2002
25 228700309 连接销 Connect pin 2
26 228302372 护板 Cover 1
27 805000607 螺栓 M16×50-10.9 Bolt 4 GB/T5783-2000
28 805300013 垫圈16 Washer 4 GB/T 97.1-2002
29 805300011 垫圈 16 Washer 4 GB/T 93-1987
30 228302330 框架焊接 Weld frame 1
31 228302348 盖板 Cover plate 1
32 805000033 螺栓M8×16 Bolt 2 GB/T5783-2000
33 805300010 垫圈 8 Washer 6
34 228700313 小盖板 Cover board 1
37 228700206 橡胶条 Rubber 2
38 805100064 螺钉 M8×20 Bolt 4 GB/T70.1-2008
39 228302373 护板 Cover 1
