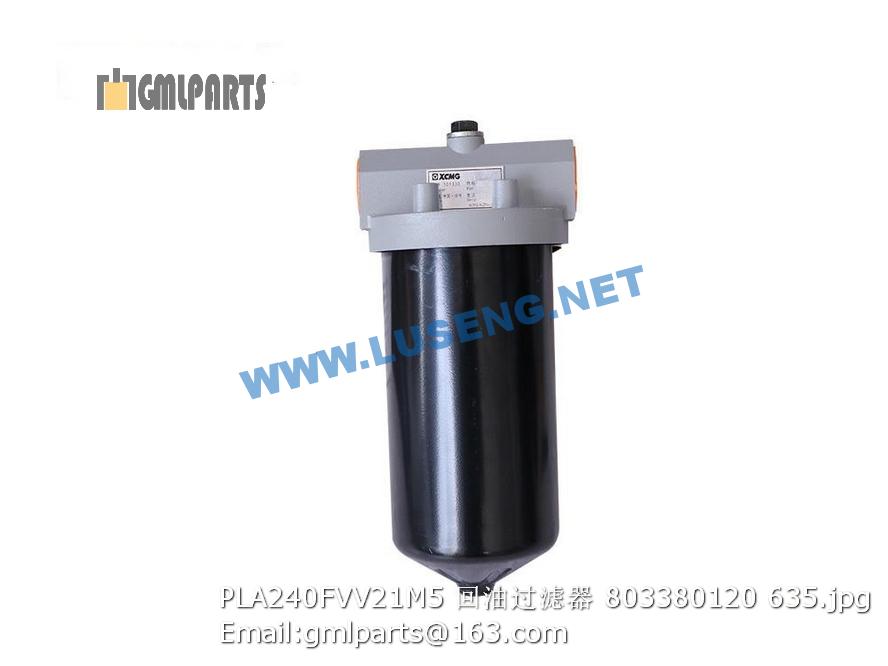

803380120 PLA240FVV21M5 FILTER XCMG
序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 ▲227000157-040601 钢珠3/8″ Screw 3 GB/T308-2000
2 ▲227000157-040602 行星轮轴 Planetary Pin 3 79001545BD
3 ▲227000157-040603 行星轮 Planet Gear 3 79001547ADY
4 ▲227000157-040604 太阳轮 Sun Gear 1 79001524ADY
5 ▲227000157-040605 隔套 Sleeve 1 77000021
6 ▲227000157-040606 垫圈85 Washer 1 GB858-88
7 ▲227000157-040607 行星轮垫片 Washer 6 75600456B
8 ▲227000157-040608 螺母M85*2 Nut 2 75501646
9 ▲227000157-040609 锥套 Sleeve 1 76101041
10 ▲227000157-040610 滚针6×30 Roll 63 75600330F
11 ▲227000157-040611 油封座 Oil Seal Cage 1 79500813A
12 ▲227000157-040612 挡油板 Ring 1 79500823
13 ▲227000157-040613 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
14 ▲227000157-040614 油封BA150*180*15 Oil Seal 1 GB/T9877.1-88
15 ▲227000157-040615 轮毂 Hub 1 83020502
16 ▲227000157-040616 轴承32024 Bearing 1 GB/T297-94
17 ▲227000157-040617 轴承32026 Bearing 1 GB/T297-94
18 ▲227000157-040618 垫圈18 Washer 16 GB93-87
19 ▲227000157-040619 制动盘螺栓 Bolt 16 75502011
20 ▲227000157-040620 齿圈 Ring Gear 1 77500938BD
21 ▲227000157-040621 组合密封垫24 Compound Seal 1 JB982-77
22 ▲227000157-040622 螺塞M24*1.5 Plug 1 75500 195A
23 ▲227000157-040623 组合密封垫12 Compound Seal 1 JB982-77
24 ▲227000157-040624 螺塞M24*1.25*9 Plug 1 75500842
25 ▲227000157-040625 行星轮架 Spider 1 CY1450.2.1-1
26 ▲227000157-040626 调整支柱 Adjust Pin 1 77000133
27 ▲227000157-040627 端盖 Cover 1 79001544B
28 ▲227000157-040628 隔套 Sleeve 1 77000021
29 ▲227000157-040629 限位块 Block 1 73520042
1 ▲227000157-040301 支承轴 Spindle 2 79500812A 79500812A
2 ▲227000157-040302 桥壳 Housing 1 ZL30E3.2-1AY ZL30E3.2-1AY
3 ▲227000157-040303 制动钳支架 Bracket 2 ZL30B-1-2 ZL30B-1-2
1 ▲227000157-040401 主传动齿轮(前桥) Pinion 1 ZL40B-2.1-4A
2 ▲227000157-040402 被动齿轮(前桥) Gear 1 ZL40B-2.1-15A
3 ▲227000157-040403 螺母M14×1.5 Nut 12 GB/T6187.2-2000
4 ▲227000157-040404 螺栓M14×1.5×50 Bolt 12 75500003
5 ▲227000157-040405 小螺伞轴承NUP2306E Bearing 1 GB/T283-94
6 ▲227000157-040406 半壳轴承32215 Bearing 2 GB/T297-94
7 ▲227000157-040407 铁丝￠1.6*600 Thread of iron 2 GB/T343-94
8 ▲227000157-040408 调整螺母 Adjust Nut 2 ZL40.2.1-13
9 ▲227000157-040409 油封FB70*95*12 Oil Seal 1 GB/T9877.1
10 ▲227000157-040410 油封FB70*95*12 Oil Seal 1 GB/T9877.1
11 ▲227000157-040411 垫圈12 Washer 1 GB/T93-87
12 ▲227000157-040412 螺栓M12×55 Bolt 1 GB/T5782-2000
13 ▲227000157-040413 螺栓M14×55 Bolt 7 GB/T5782-2000
14 ▲227000157-040414 垫圈14 Washer 7 GB/T93-87
15 ▲227000157-040415 角齿螺母M33×1.5 Lock Nut 1 ZL40.2.1-1
16 ▲227000157-040416 联接法兰 Flange 1 C201A1-02.01-2
17 ▲227000157-040417 防尘罩 Deflector 1 ZL40.2.1.1-2
18 ▲227000157-040418 密封盖 Cover 1 ZL40.2.1-3
19 ▲227000157-040419 轴承座 Bearing Cage 1 ZL40.2.1-6
20 ▲227000157-040420 主减速器壳体 Carrier Case 1 82020403A
21 ▲227000157-040421 小螺伞轴承31310 Bearing 1 GB/T2797-94
22 ▲227000157-040422 调整垫片 Adjusting Washer 1 ZL40.2.1-5
23 ▲227000157-040423 锁紧片螺栓M10×1×20 Bolt 2 GB/T32.3-1988
24 ▲227000157-040424 锁紧片 Lock Plate 2 ZL40.2.1-18A
25 ▲227000157-040425 小螺伞轴承31311 Bearing 1 GB/T2797-94
26 ▲227000157-040426 轴承隔套 Adjusting Sleeves 1 ZL40.2.1-7A
27 ▲227000157-040427 轴承盖 Cover 1 75200033
28 ▲227000157-040428 螺栓M22×2.5×99 Bolt 4 75502600
29 ▲227000157-0405 差速器总成 Diff. Assembly 1 ZL40.2.1
30 ▲227000157-040429 轴挡φ30 Circlip 1 GB894.2-87
