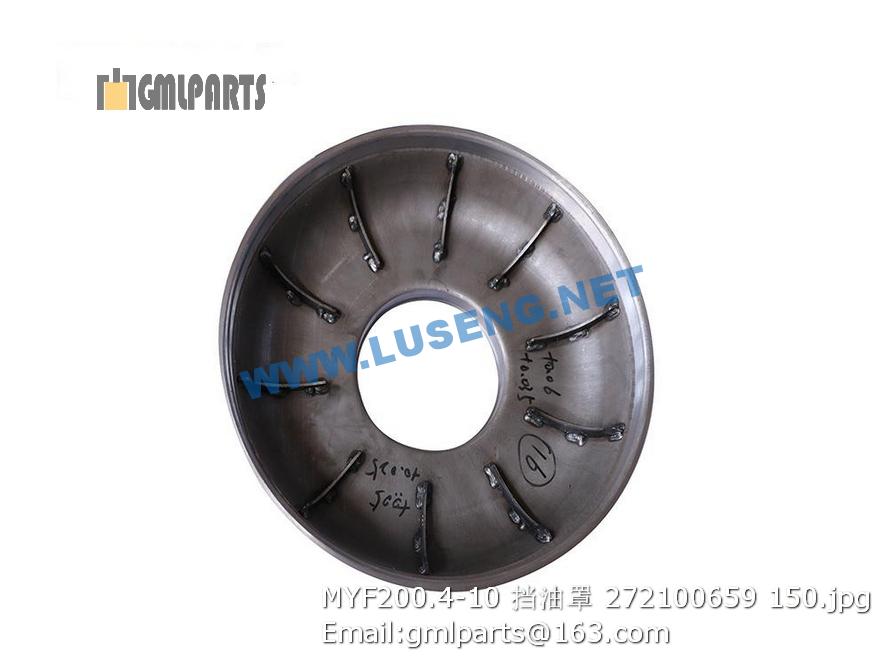

272100659 MYF200.4-10 oil Baffle XCMG GEARBOX PARTS

序号 零件号 版本 中文名称 英文名称 数量 备注 装配备注
1 226803605 前梁 Front girder 1
2 226803556 横梁 Girder 1
3 226803555 右侧板焊接 Right side plate weld 1
4 805002127 螺栓M24×2×120 Bolt 28 GB/T5785-2000
5 805300021 垫圈24 Washer 28 GB/T97.1-2002
6 226803604 左侧板焊接 Left side plate weld 1
7 805000008 螺栓 M6×12 Bolt 8 GB/T5783-2000
8 805300030 垫圈 6 Washer 6 8 GB/T93-1987
9 228700369 板 Board 2
10 228700370 盖 Cover 2
11 228700371 垫 Washer 6
12 805000616 螺栓 M8×12 Bolt 1 GB/T5783-2000
13 800511347 轴承 GAC85S/K Bearing 4 GB/T304-2002
14 228700391 转向铰接 Steering hitch 1
15 801100336 黄油嘴M10X1 Grease Nipple 3 JB/T7940.1-1995
16 228700372 盖 Cover 1
17 805101805 螺钉M12×16 Bolt 3 GB/T77-2000
18 228700373 V型圈 V-ring 2
19 805000560 螺栓M24×70 Bolt 12 GB/T5782-2000
20 228700374 调整垫 Shim 2
21 228700375 V型圈 V-ring 1
22 805000048 螺栓M12X35 Bolt 12 GB/T5783-2000
23 805300018 垫圈12 washer 12 12 GB/T93-1987
24 228700367 防尘盖 Prevent dust cover 1
25 228700703 刮泥板Ⅰ Scraper 2
26 228700704 刮泥板Ⅱ Scraper 2
27 805301377 垫圈 16(达克罗) Wahser 16
28 805000051 螺栓 M16×40 Bolt 16 GB/T5783-2000
29 228600280 可调刮齿 Scraper 18
30 228600281 固定板 Board 18
1 226802286 油位螺栓 Oil Lever Bolt 1
2 805300055 垫圈 30 WASHER 4 JB982-77
3 228700169 油塞 Oil Plug 4
4 859915662 油封 1
5 805301374 垫圈 12(达克罗) Bolt 96
6 230500568 减振块 Shock absorber 12 YLJ-16C
7 226803297 压轮 drum 1
8 226801837 轴承盖 Bearing plate 1
9 805000040 螺栓M16×60 Bolt 24 GB/T5783-2000
10 805301377 垫圈 16(达克罗) Wahser 16
11 226803301 左偏心块总成 Eccentricity shaft 1
12 805000528 螺栓M16×40 Bolt 24 GB/T5783-2000
13 227001992 轴承座 bearing housing 2
14 800553109 圆柱滚子轴承 NJ2324ME/C5S0 bearing 4
15 227001549 传动轴 Transmission shaft 1
16 226803304 右偏心块总成 Transmission shaft 1
17 226803296 右轴承座 dearing 2
18 226801655 框架轴承座 Frame bearing set 2
